Modern Living Pro
Wood Grain

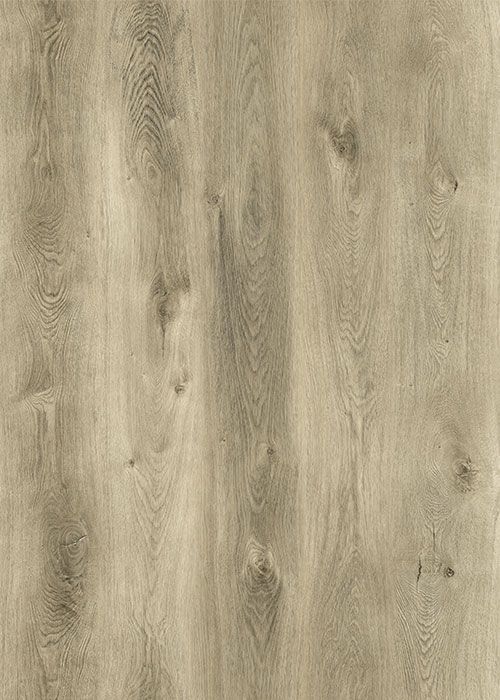

SC001 Mont Claire
$1.39 per sqft.

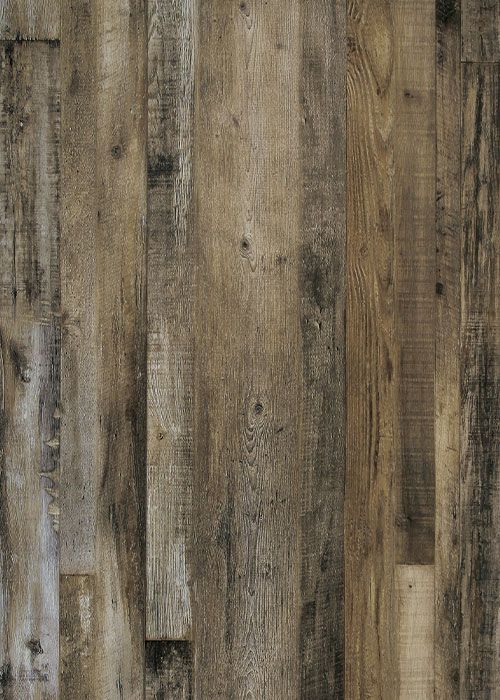

SC002 Woodmont
$1.39 per sqft.

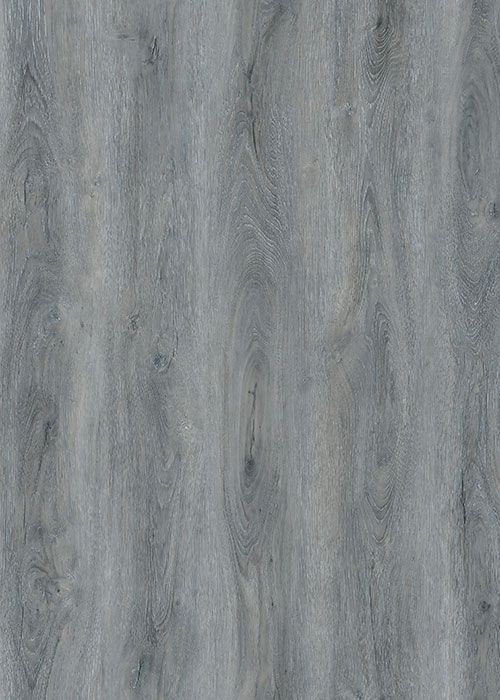

SC003 Yorkshire
$1.39 per sqft.

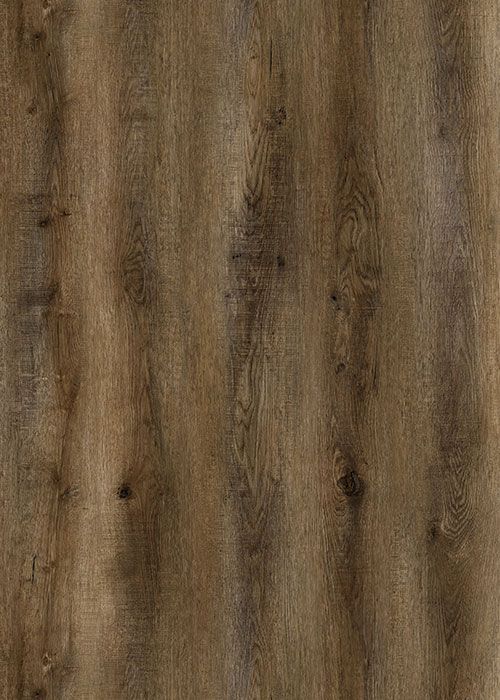

SC004 Carolina Fall
$1.39 per sqft.
Modern Living Rigid Core Basic
Rigid Core Basic collection presents most authentic wood plank and stone tile look and texture with high-definition imagery plus and Embossed In Register technology. Various luxurious wood and tile designs with realistic HD-3D printing technology and painted bevel enhanced its gorgeous aesthetic. Ultra-fresh treatment for both attached underlayment and top surface inhibits the growth of mold, mildew and odor even with moisture from concrete subfloors.
Comfortable to daily life, friendly to pets!
Waterproof
ScratchGuard Finish
Pad Attached
INDUSTRY-LEADING RESISTANCE
TO SCRATCHES, STAINS, AND DENTS
Bolstered by the strength of real diamonds,
protected by the Wear Layer,
protecting the beauty of your investment.
Wood Grain Specifications
Length
48.03"
Width
7.17"
Thickness
4.5mm
Wear Layer
12mil
Finish
Emboss
Edge Description
Square
Sqft/Box
28.68
lb/Box
43.2
Box/Plt
60
Sqft/Plt
1721
lb/Plt
2657
Plt/FCL
16
Technical Data
| Items | Standards | Requirements | Results |
|---|---|---|---|
| GreenGuard Gold Certified | UL 2818 - 2013 Gold Standard for Chemical Emissions for Building Materials, Finishes and Furnishings | Refer to Standards | Pass |
| Floorscore Certification | SCS-EC10.3-2014v3.0 | Refer to Standards | Pass |
| CE Certification | EN14041 | Refer to Standards | Pass |
| Fire resistance | EN 9239-1 EN ISO11925-2 EN 13501-1 | Critical Fluxf≥8.0kW/m2 Fs≤150mm within 20s Smoke≤750% minutes | Bfl-S1 |
| Phthalate tests (DBP/BBP/DEHP/DINP/ DNOP/DIDP) | EN 14372:2004 | N/A | Free |
| Dimension stability | ASTM F2199-09(R2014) | ≦0.25% | Manufacturing direction:-0.046% Across-manufacturing direction:-0.009% |
| Seam strength | EN 684:1995 | N/A | Ave.:360N/50mm Pass Min.:330N/50mm |
| Residual indentation (%) | ASTM F1700-13a & ASTM F1914-07(2011) | Average value≦8 Individual value≦10 | 0.4 Pass |
| Resistance to chemicals | ASTM F1700-13a & ASTM F925-13 | No more than a slight change in surface dulling,surface attack,or staining | No change in surface dulling,surface attack,or staining was detected |
| Heat stability | ASTM F1514-03(R2013) | △E*ab< 8 | △E*ab=0.67 Pass |
| Static loading | ASTM F970-17 | N/A | 0.04mm Pass |
| Soluble heavy metal contents test | ASTM F963-16(Clause 8.3) | N/A | Free |
| Large ball impact resistance | NALFA/ANSI LF-01-2011 | N/A | No cracks or fractures occurred at the height of 2500mm |
| Static Electrical Propensity | EN 1815:2016 method A | ≦2kV | 0.2kV |
| Determination of Impact Sound Insulation Class | ASTM E492-09(2016) ASTM E989-06(2012) | N/A | IIC=65 |
| Formaldehyde | ISO 17226-1:2008 | N/A | Free |
| Surface Bond | NALFA/ANSI LF-01-2011 | N/A | 1.14MPa Pass |
| Resilient floor covering Determination of peel resistance | EN ISO 24345:2012 | ≥54N/50mm | Longitudinal direction:95N/50mm Cross direction:95N/50mm |
| Dimensional stability | ISO 23999:2008 | N/A | Average: X Direction: 0.02% Pass Y Direction: -0.06% |
| Thermal conductivity | EN 12667:2001 | N/A | 0.154 W/(m.K) |
| Thermal Resistance | EN 12667:2001 | N/A | 0.033(m2.K)/W |
| Color Fastness | EN ISO 105-B02:2014 | N/A | Grade 6 |
| Curling | ISO 23999:2008 | N/A | Average: 0.5mm Pass |
| Locking strength | ISO 10582:2017 Annex D | Class 32, type I:≥1.5kN/m | Long side(X): 7.6 kN/m Short side(Y): 6.3 kN/m Pass |
| Resistance to staining | ISO 26987:2008 | N/A | Index 0: Not affected Pass |
| Determination of dimensional stability and curling after exposure to heat | ISO 23999:2012 | ≤0.25% The curling ≤ 2mm | MD:-0.05% AMD: 0% 0mm |
| Residual indentation | ISO 24343-1:2007 | N/A | Average: 0.02mm Pass |
| Locking strength | ISO 10582:2017 Annex D | Class 32, type I:≥1.5kN/m | Long side(X): 7.6 kN/m Short side(Y): 6.3 kN/m Pass |
